Entity-Association Diagram

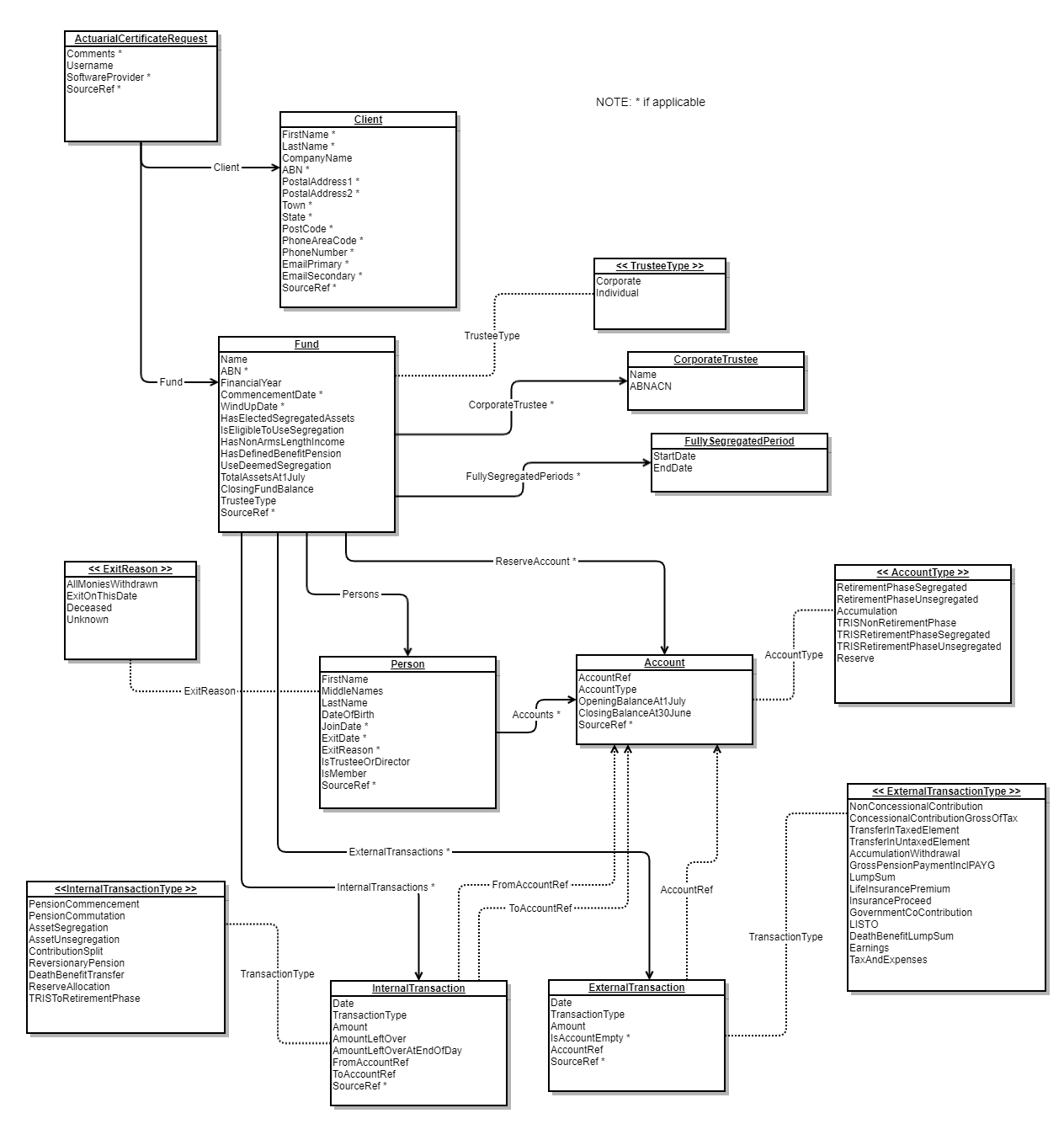

The below diagram is a visual representation of the data format and shows the entities, their attributes and the associations between entities.

Optional (non-mandatory fields) are denoted with an asterisk (*) after the field name.
